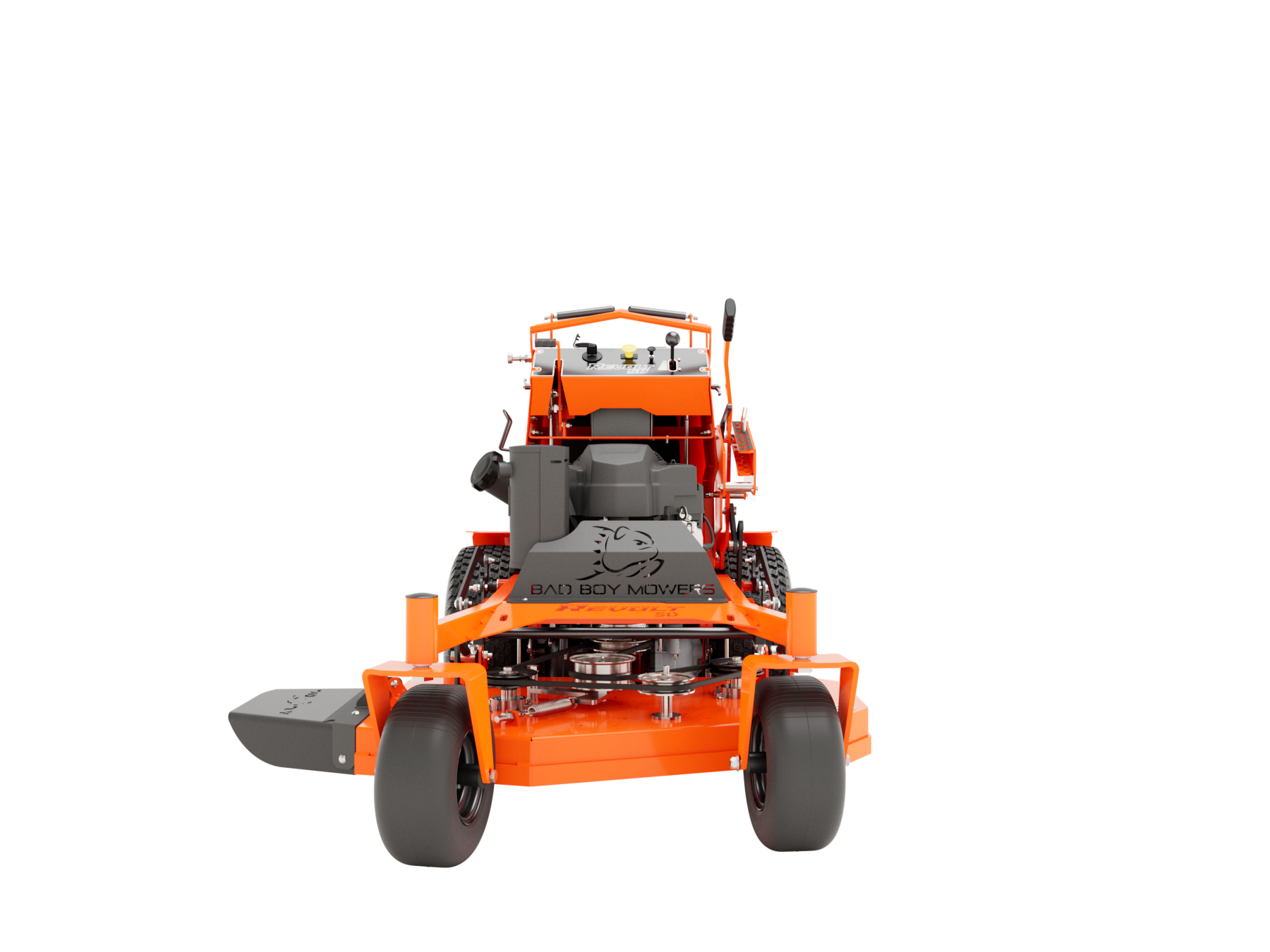

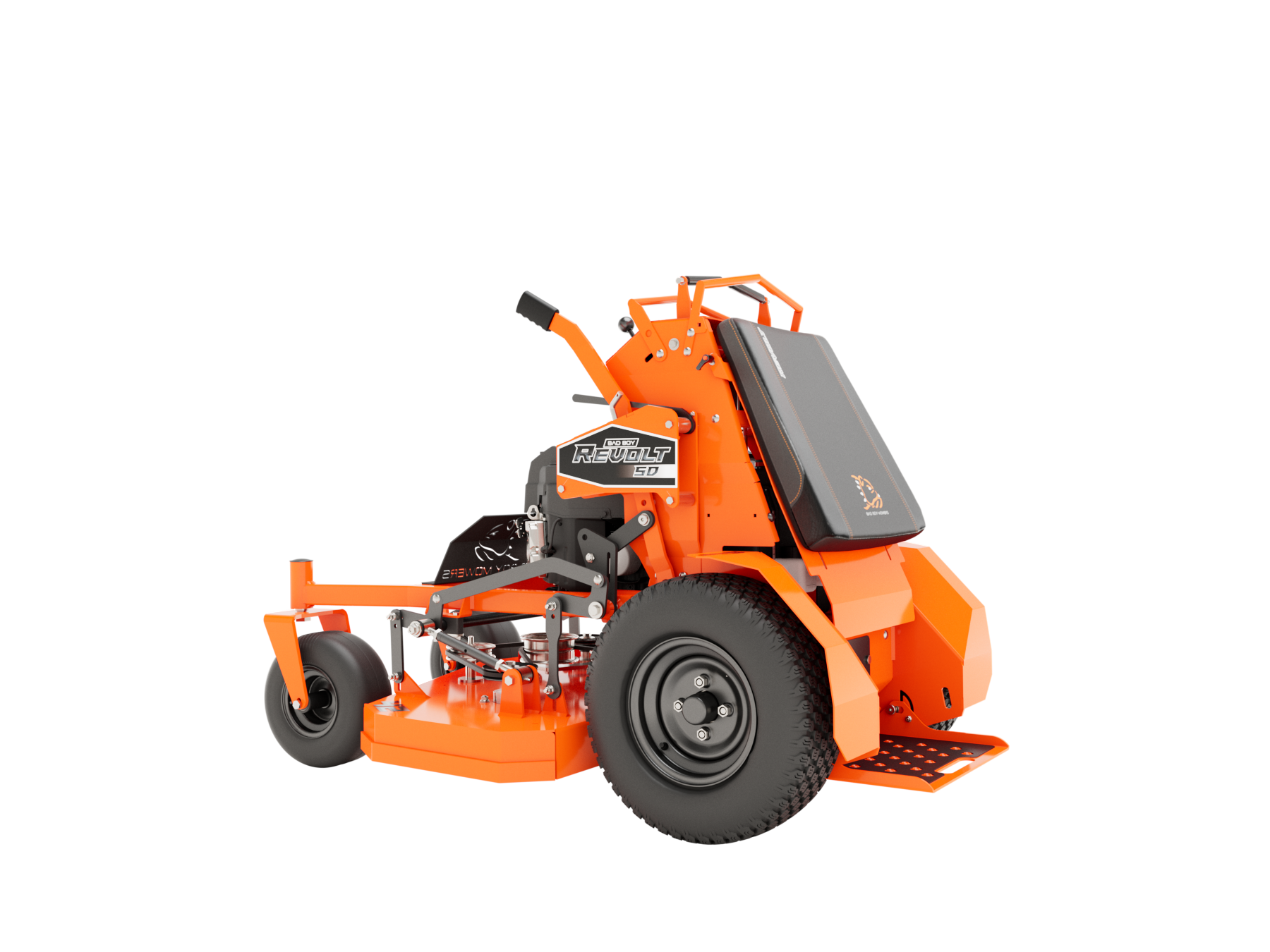

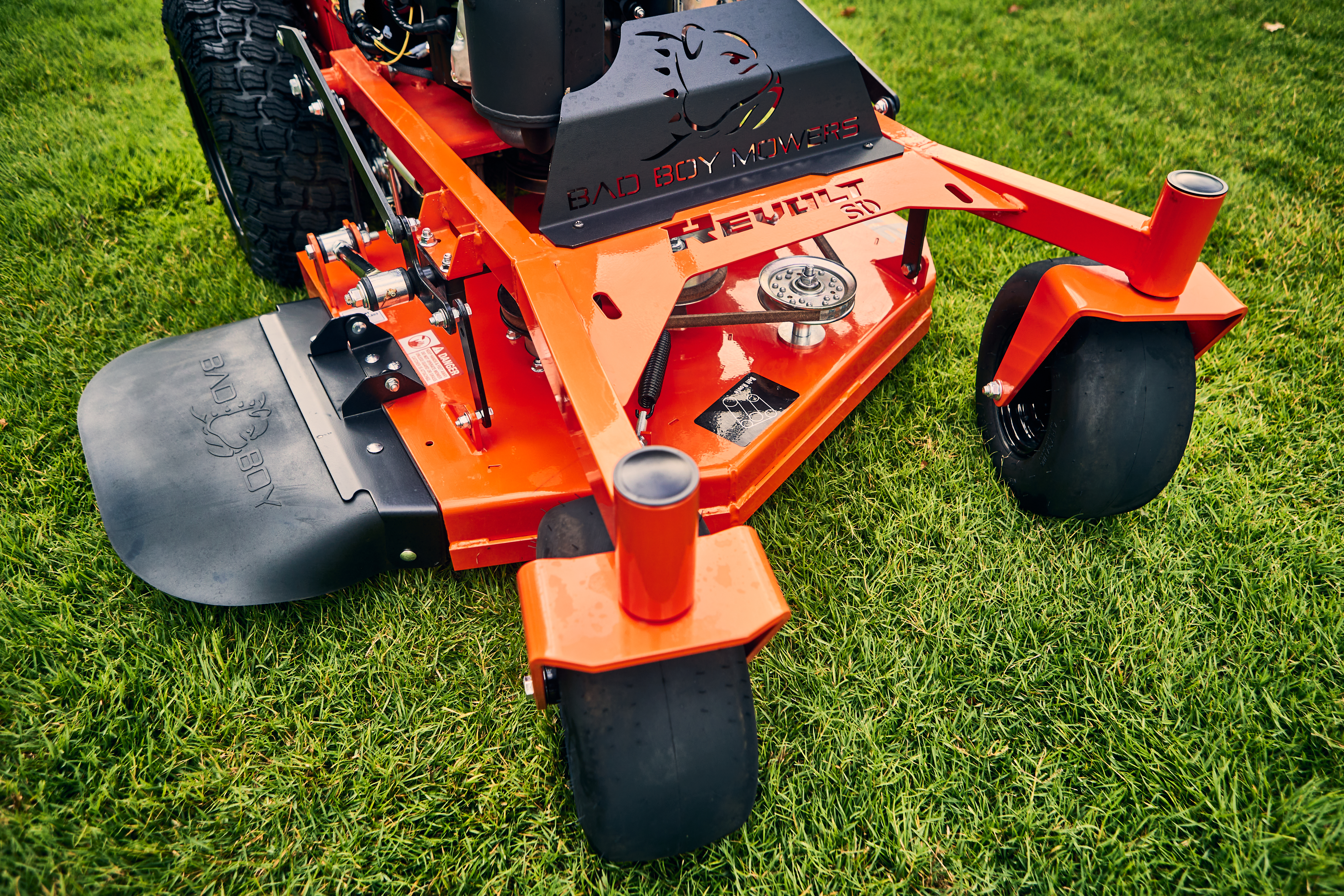

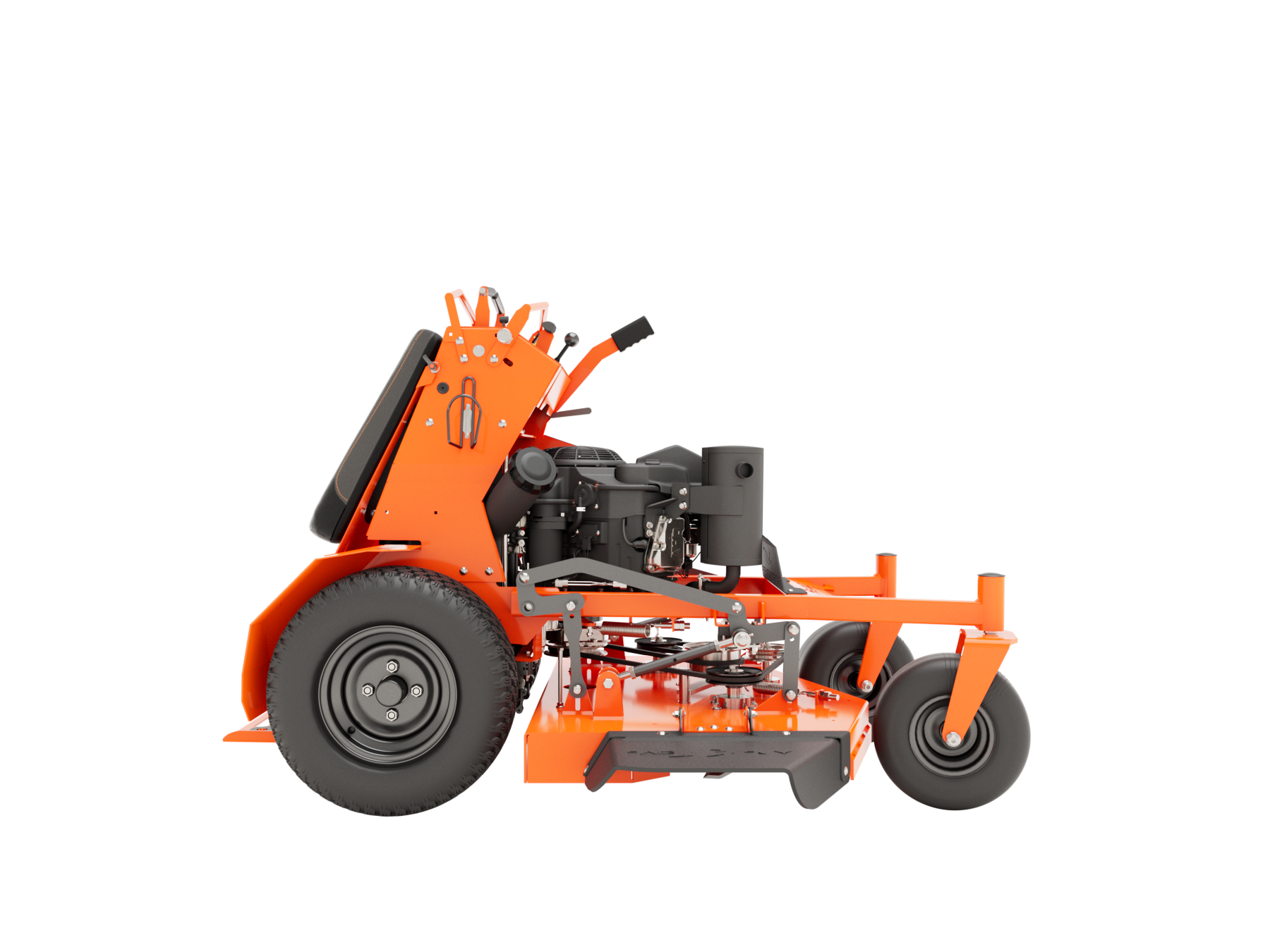

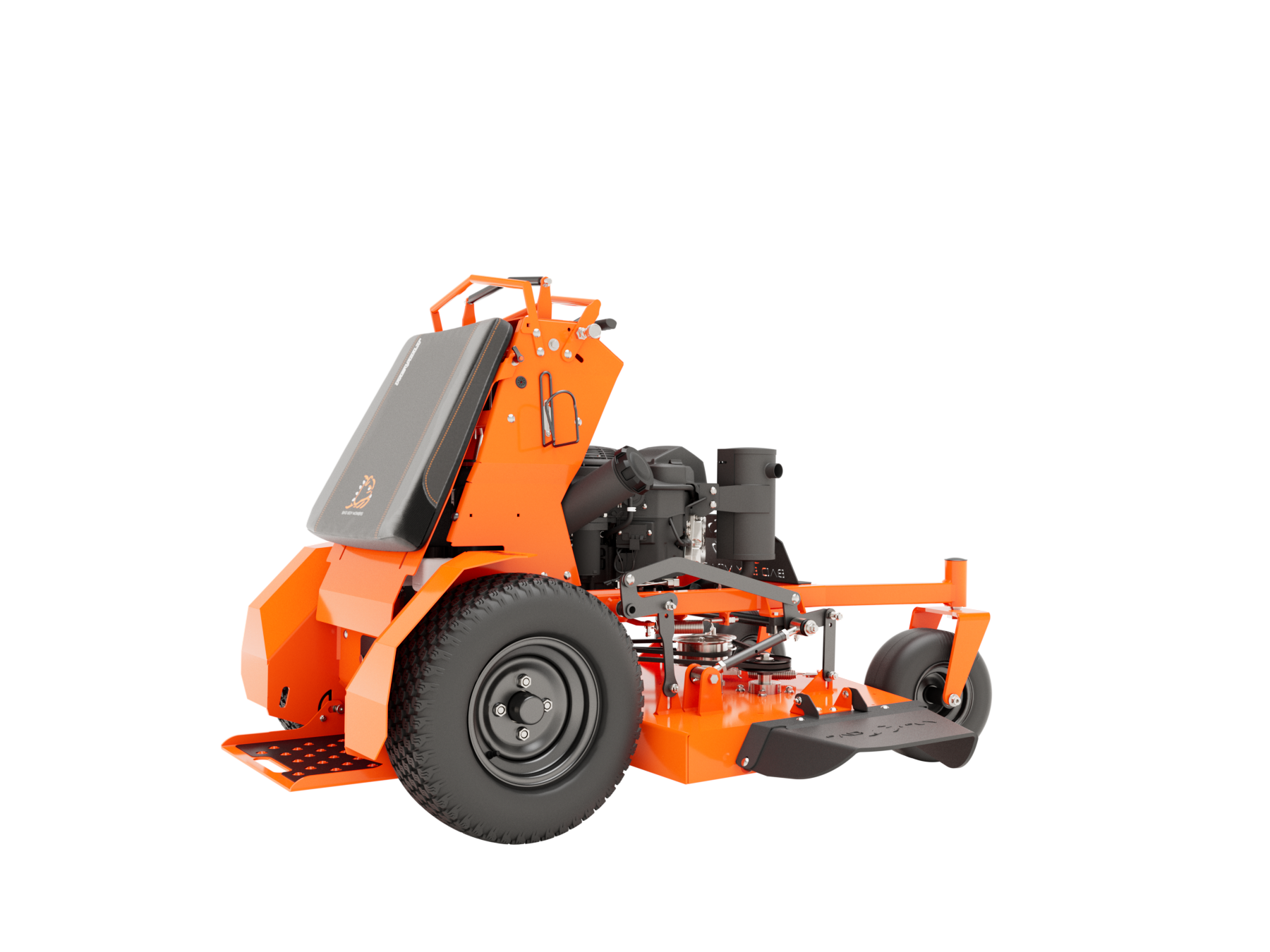

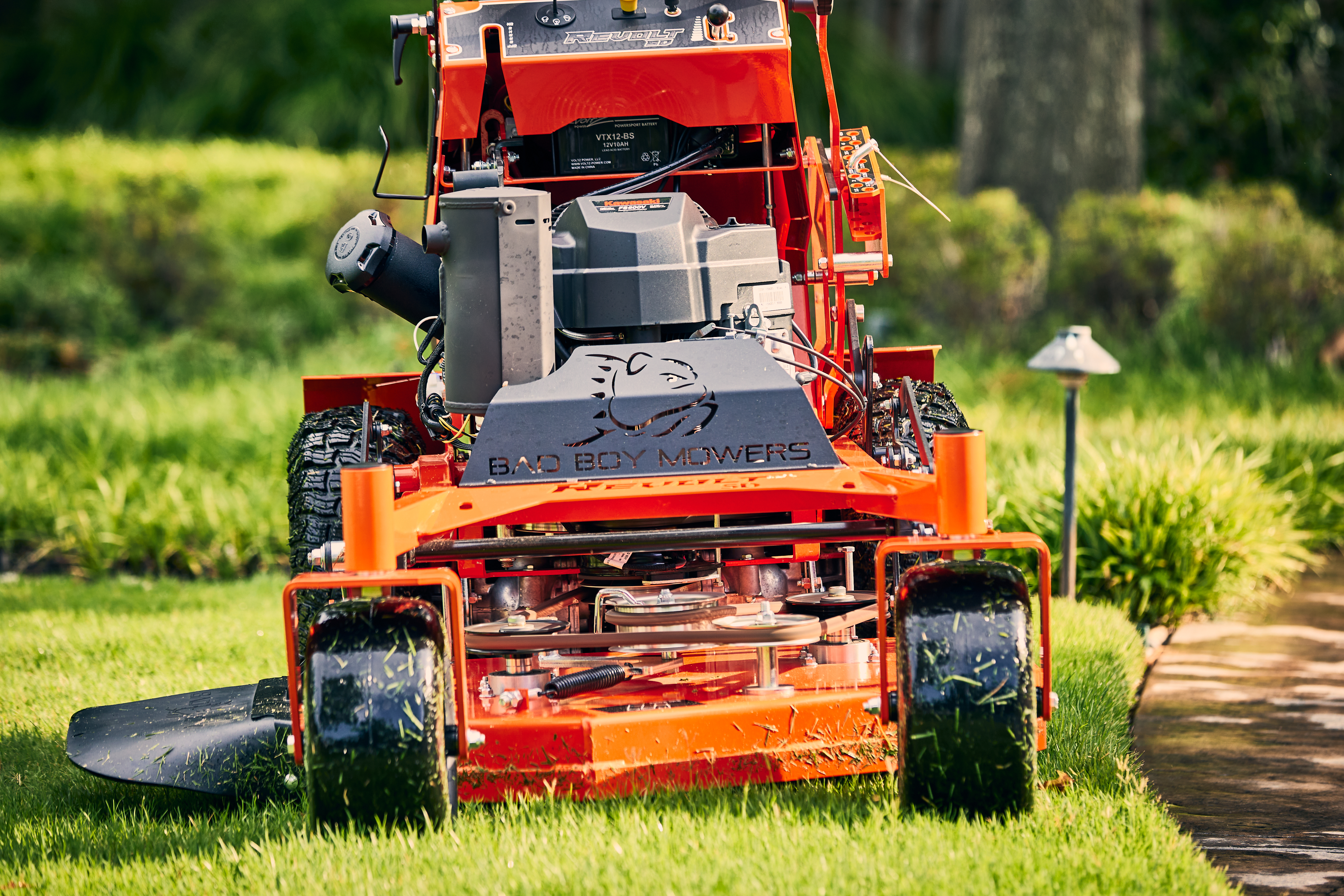

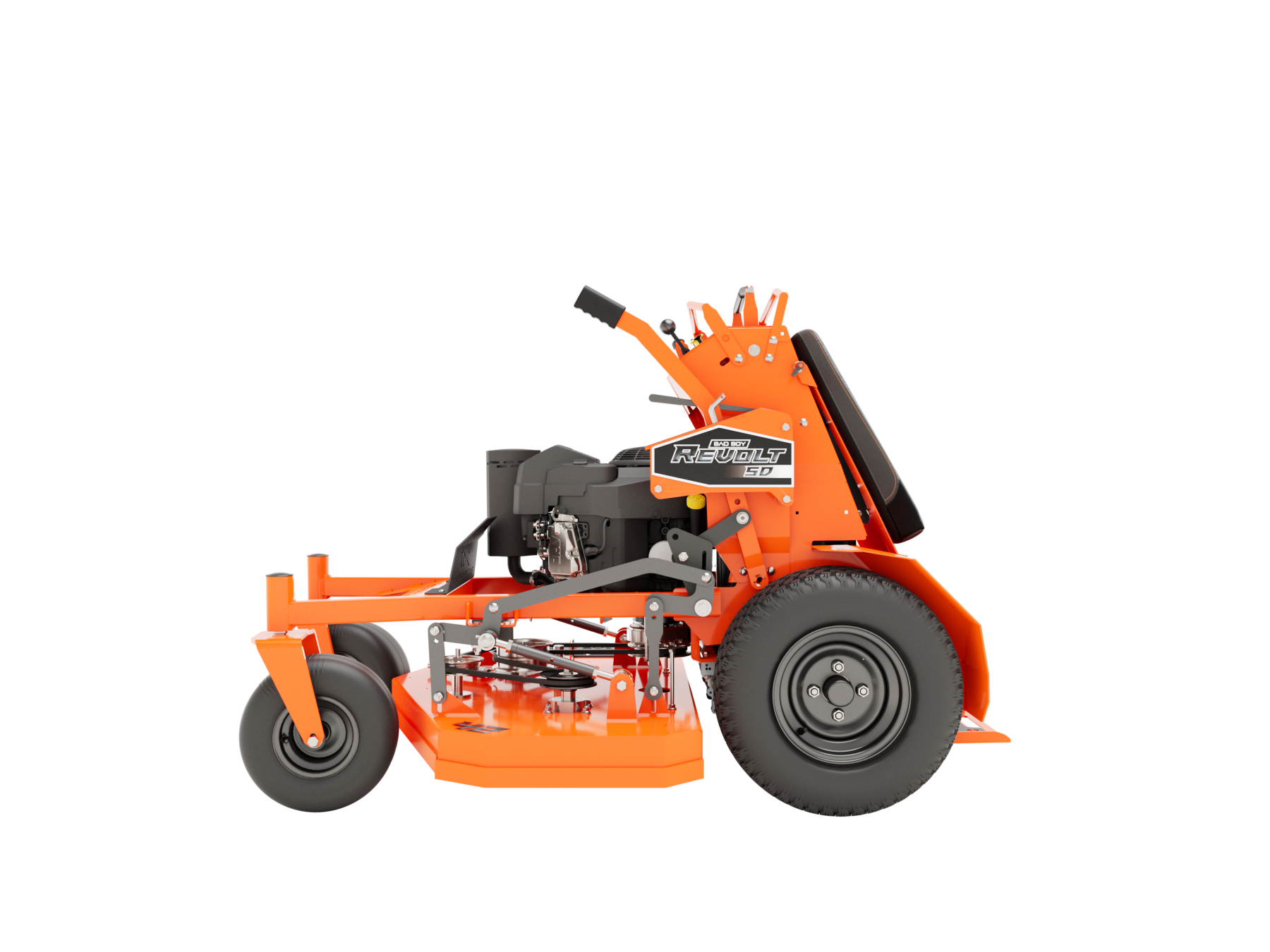

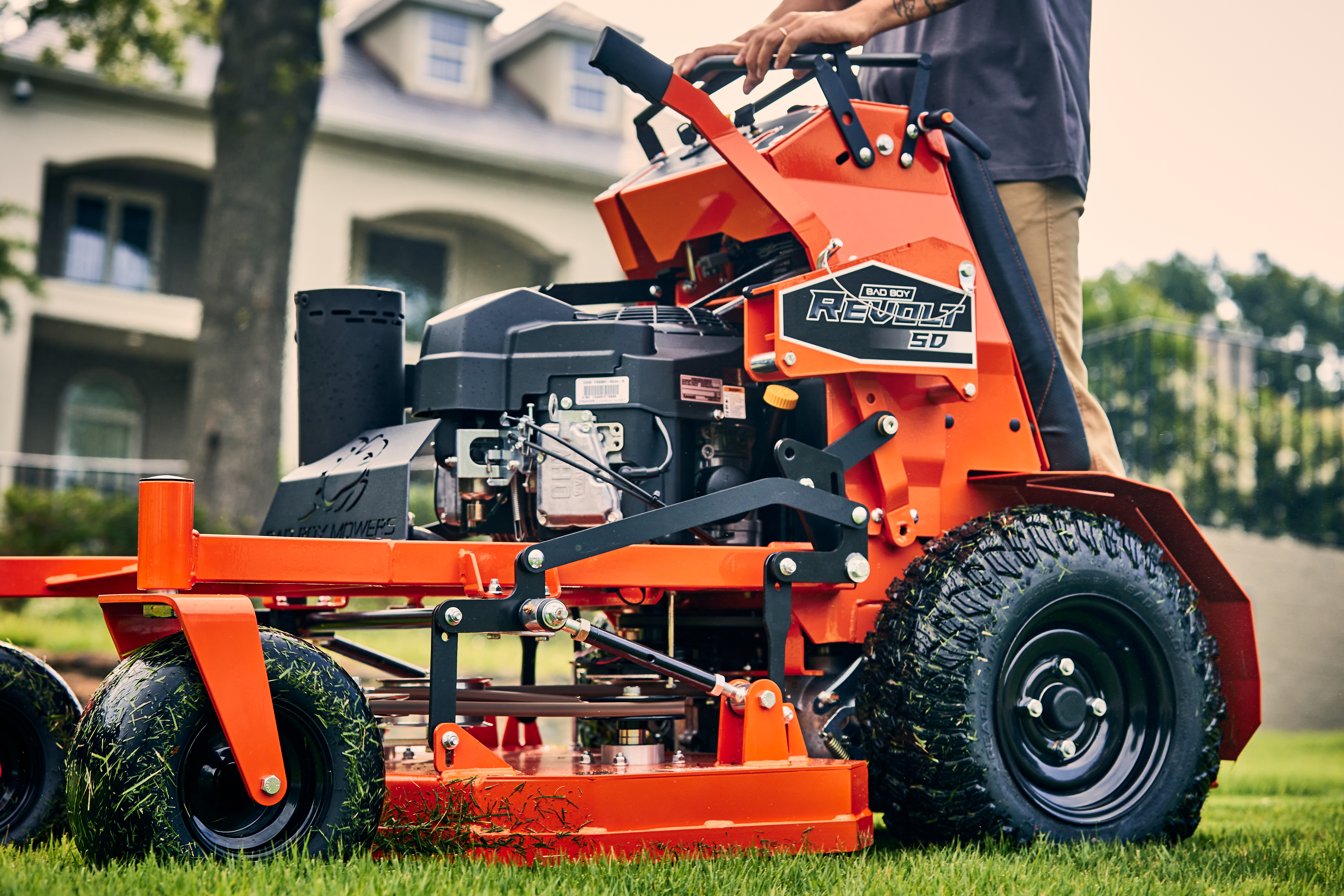

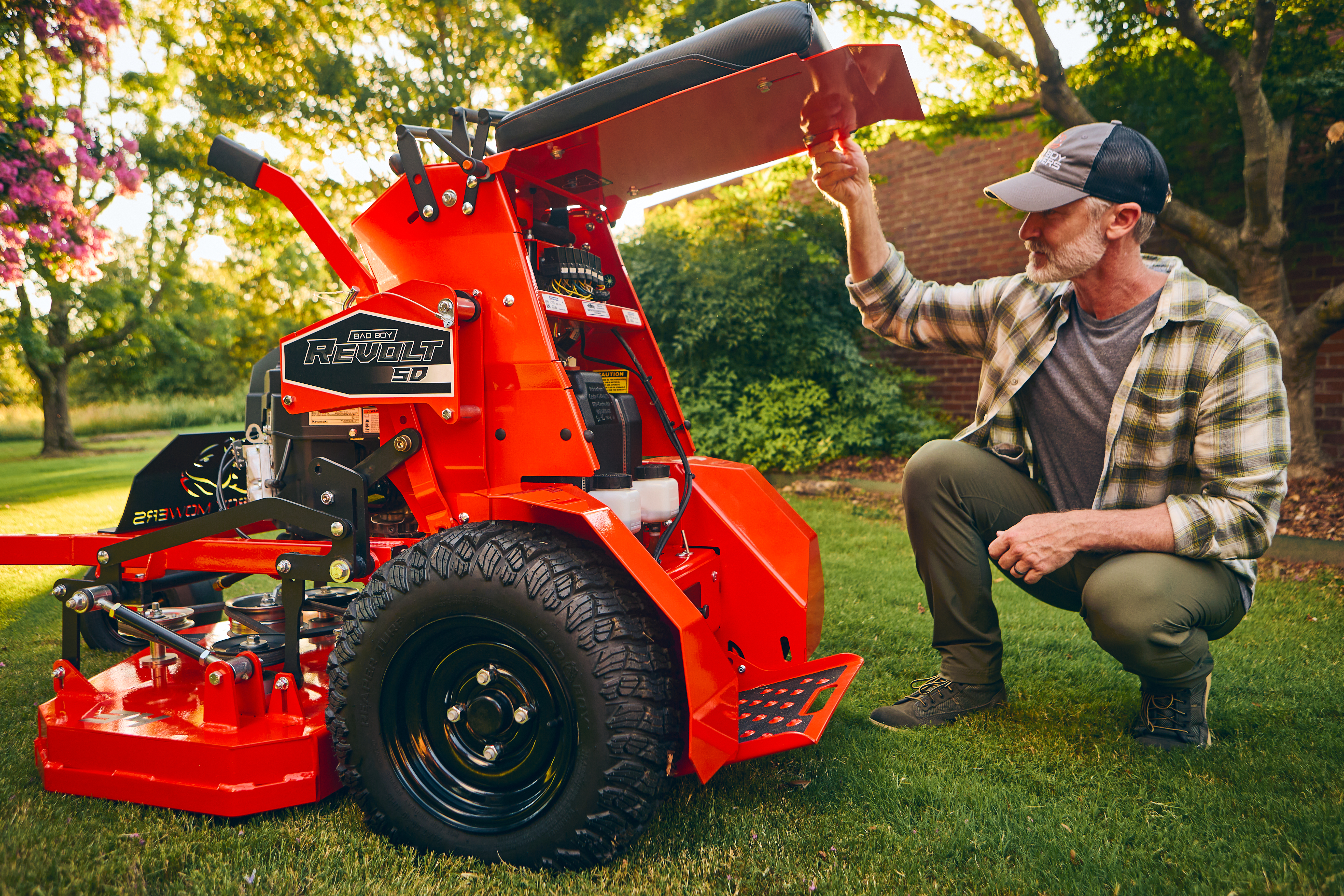

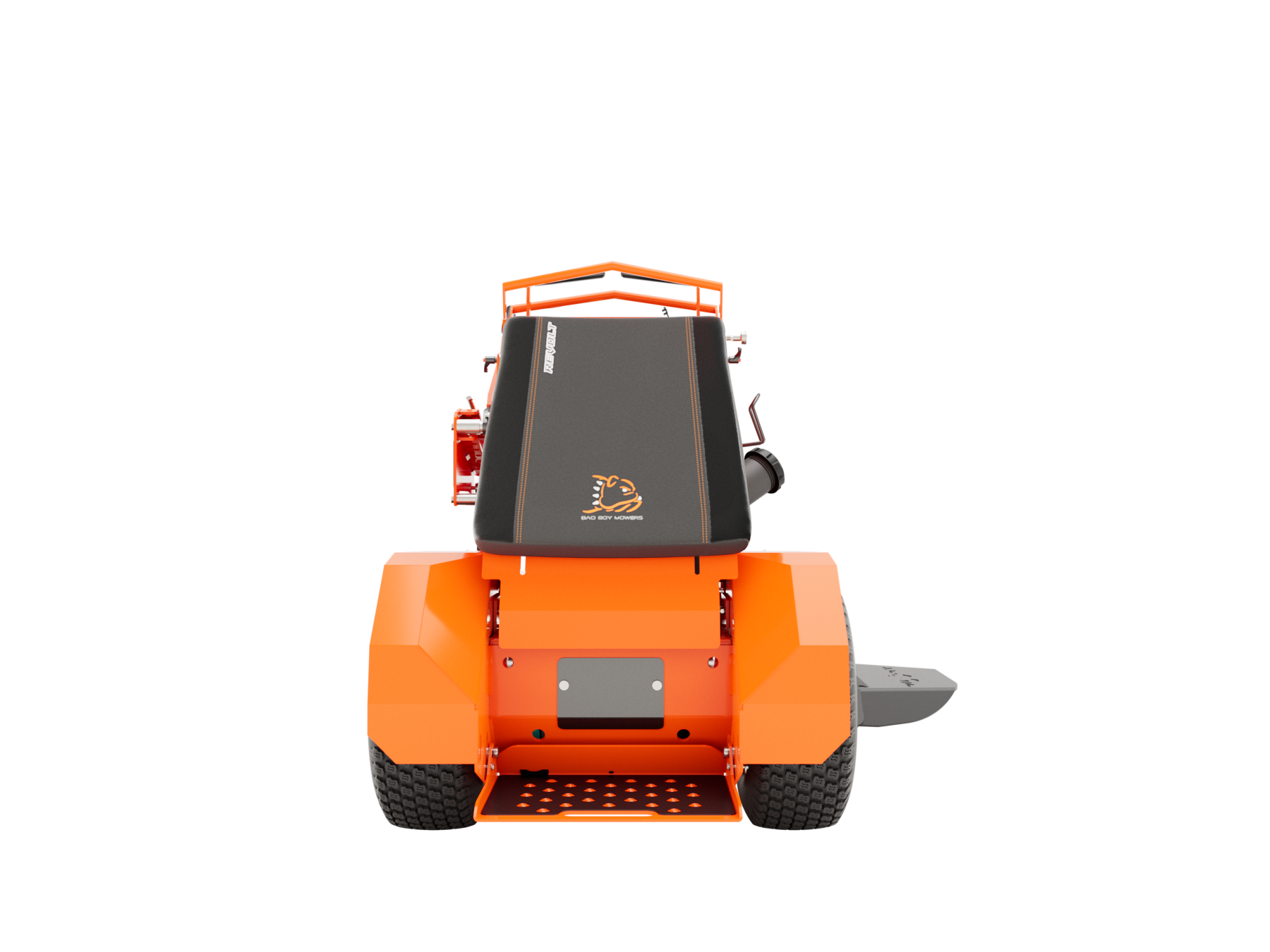

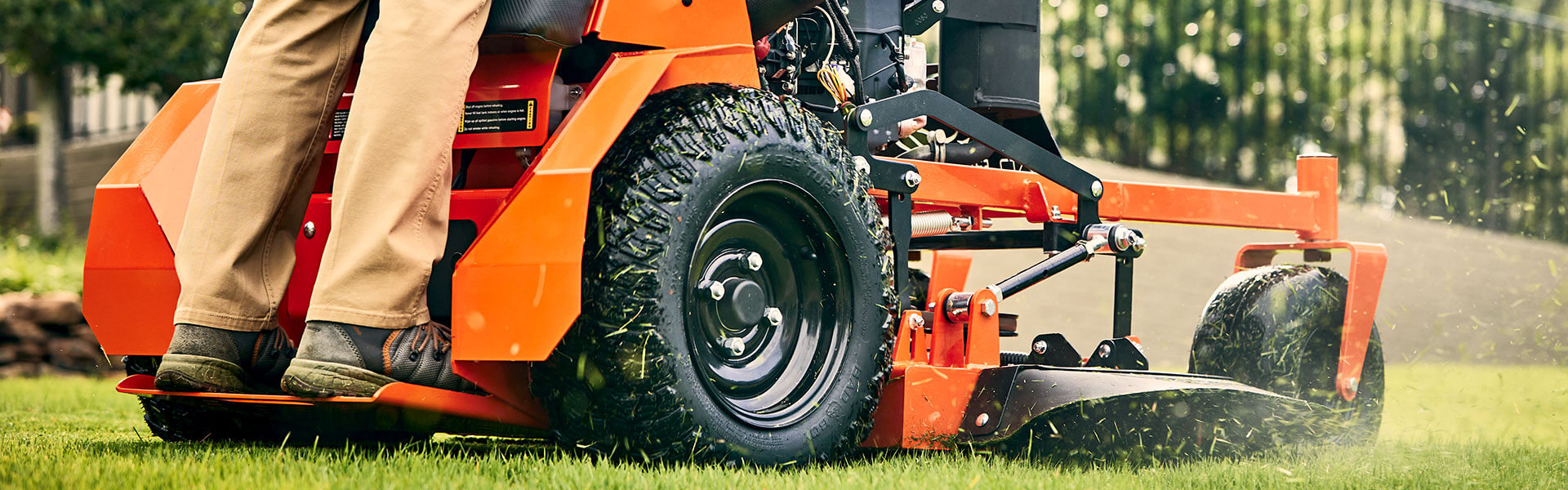

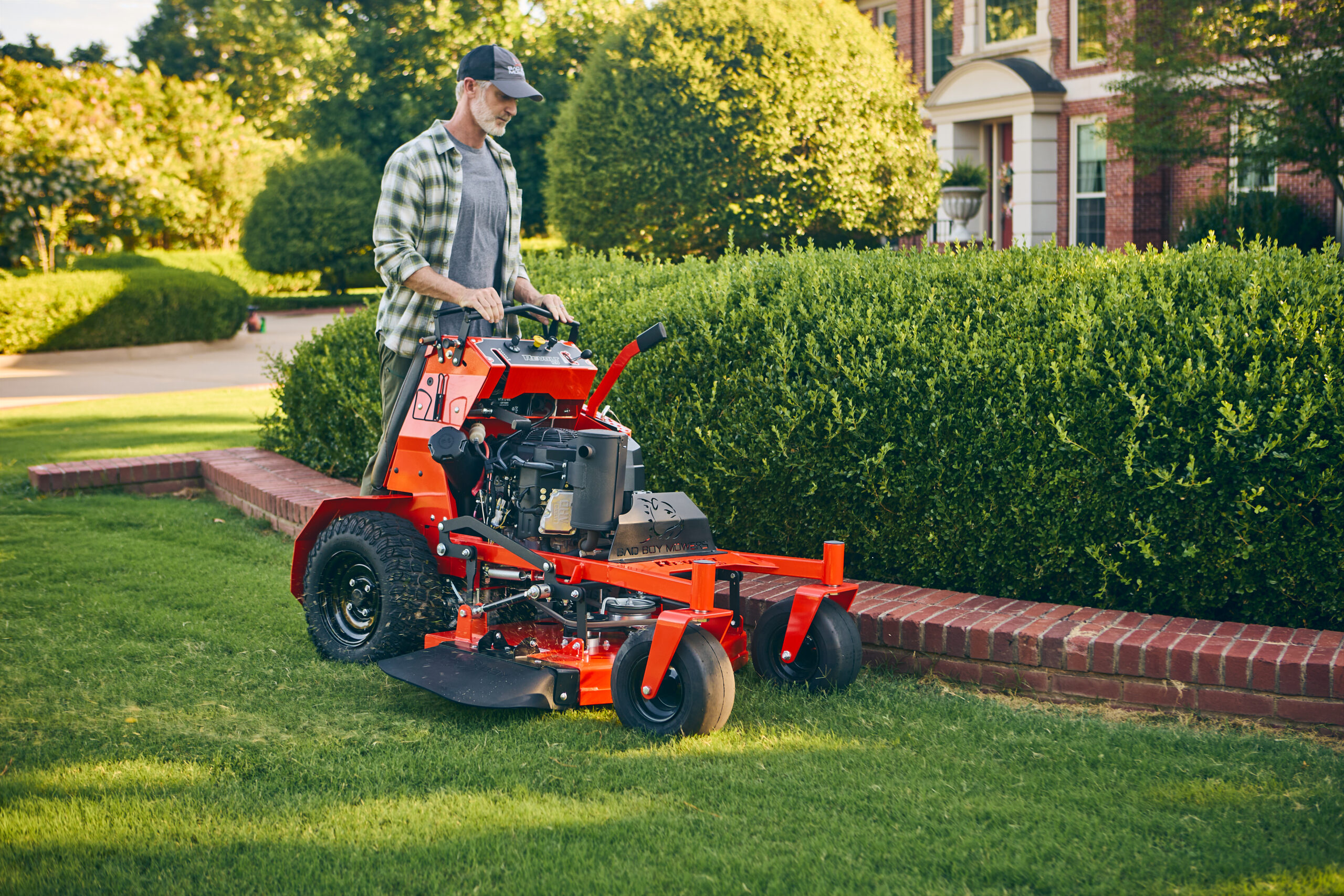

The Revolt SD is Bad Boy’s residential stand-on zero-turn mower, engineered for homeowners needing agile performance in tight spaces like gated yards. Powered by Kawasaki FS600V 603cc (18.5 hp) air-cooled or Kohler KT722 747cc (22 hp) air-cooled engines, it’s available in compact 34″ (86 cm) or 42″ (107 cm) deck sizes. Featuring dual Hydro-Gear® 2800 10cc integrated transaxles for up to 14.5 km/h forward speed, manual lift with side-mount height adjustment (38-114 mm cut), electric PTO, 19-liter unleaded gasoline fuel capacity, 21×7-10 Reaper® rear tires, and 13×6.5-6 smooth front tires. The 3/16″ (4.8 mm) or 7-gauge all-steel formed/welded deck with reinforced edges ensures clean cuts, complemented by patented suspension platform, quick-remove operator pad, 3/8″ steel front forks with 89 mm trail for smooth turns, PEER maintenance-free spindles, three-position speed control, ergonomic thigh pad, and quick-access panels. Its compact frame and low center of gravity provide superior maneuverability and balance for effortless mowing.
| Engine Options | Kawasaki & Kohler |
|---|---|
| Rear Tire/ Front Tire | 34″/42″ – 21×7-10 Reaper® / 13×6.5-6 Smooth |
| Transmission | 34″/42″ – 2800 Hydro-Gear® 10cc Integrated Transaxle |
| Turning Mechanism | Zero-Turn |
| Fuel Tank | 18,9 Liter |
| Number of Gears | Automatic |
| Drive | Rear Wheel Drive |
| Cooling System | Air-Cooled |
| Speed | Up to 14,5 km/h |
| Electric Start | Yes |
| Type of Steering | Two-Lever Steering |
| Suspension | Patented Suspension Platform |
| Cutting Widths | 34″ & 42″ |
|---|---|
| Number of Blades | 3 |
| Advanced Chute System | Optional |
| Mowing Methods | Side Discharge / Mulching |
| Mulching Kit | Optional Available |
| Rear Basket | Optional Available |
| Rear Discharge | – |
| Side Discharge | Yes |
| Hight Adjustment | Manual Lift |
| Deck Thickness | 0,48 cm |
| Cutting Height | 3,8 cm – 11,4 cm |
| Mowing Backwards | Yes |
| Warranty | 2 years or 400 hours for personal use only, 1 year for commercial use |
|---|---|
| Operating Hours Counter | Yes |
| Seat | – |
| Rollover Protection (ROPS) | – |
| Included in Delivery | 2 Keys, User Manual |
| Length | 162 cm |
|---|---|
| Width (Chute Up/ Chute Down) | 34″ Model – 38,5″/ 50,5″ (97,8 cm/ 128,3 cm),
42″ Model – 50,5″/ 62,5″ (128,3 cm/ 158,8 cm) |
| Height | 47″ (119,4 cm) |
| Weight | 34″ Model – 327,5 kg
42″ Model – 323,5 kg |
Pick the Revolt SD for homeowner stand-on perfection: Compact 34″/42″ decks slip through gates easily, the full patented suspension platform reduces fatigue on bumpy lawns, and dual Hydro-Gear 2800 drives with Reaper tires deliver reliable power up to 14.5 km/h. With quick-remove pads, side-mount lifts, and durable steel decks at an affordable price, it’s the agile, low-maintenance choice for precise cuts in tight spots without compromising Bad Boy quality!
A custom setup is coming soon. With our configurator, you will be able to combine your mower with suitable attachments and accessories to create a machine that matches the way you work.
