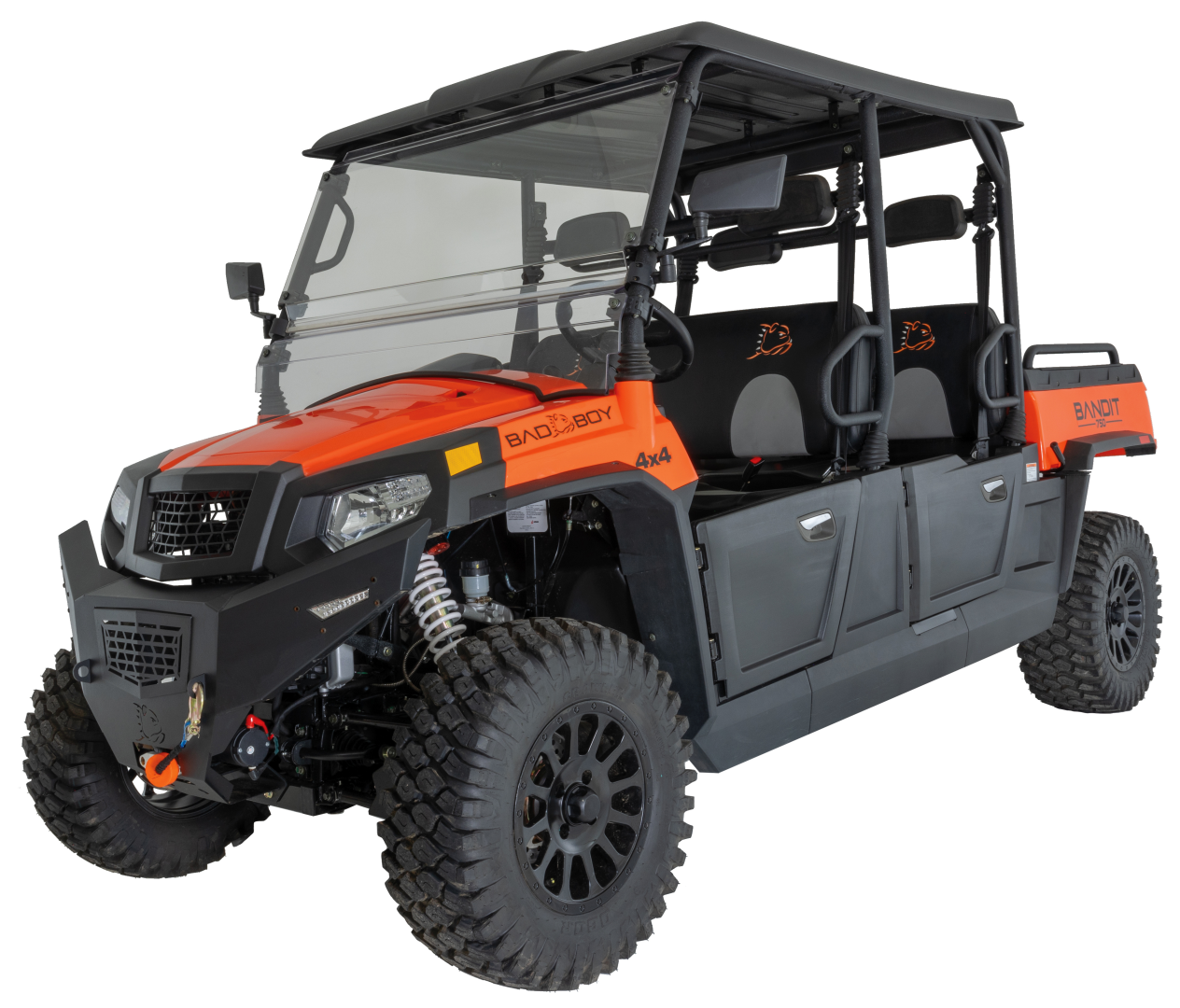

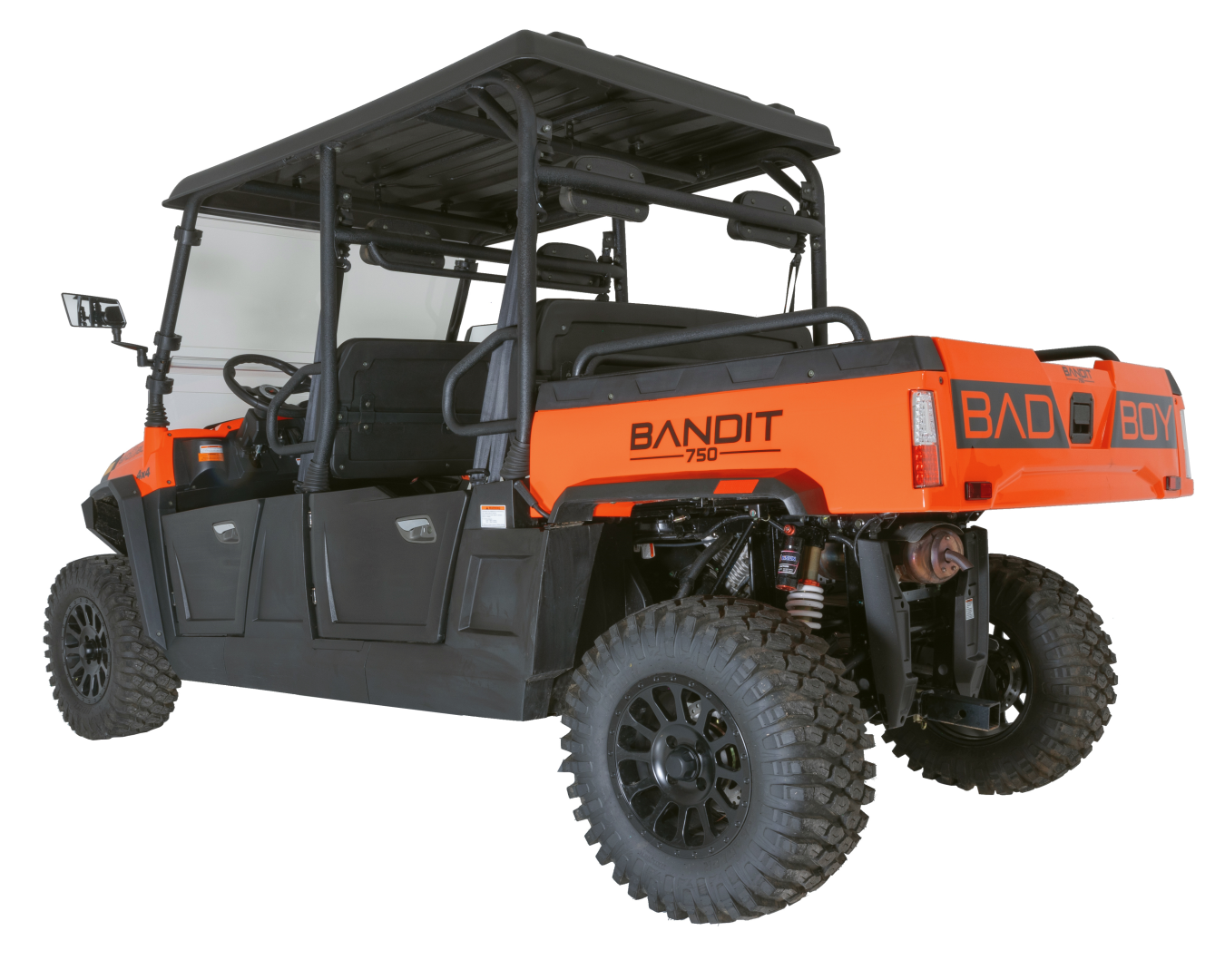

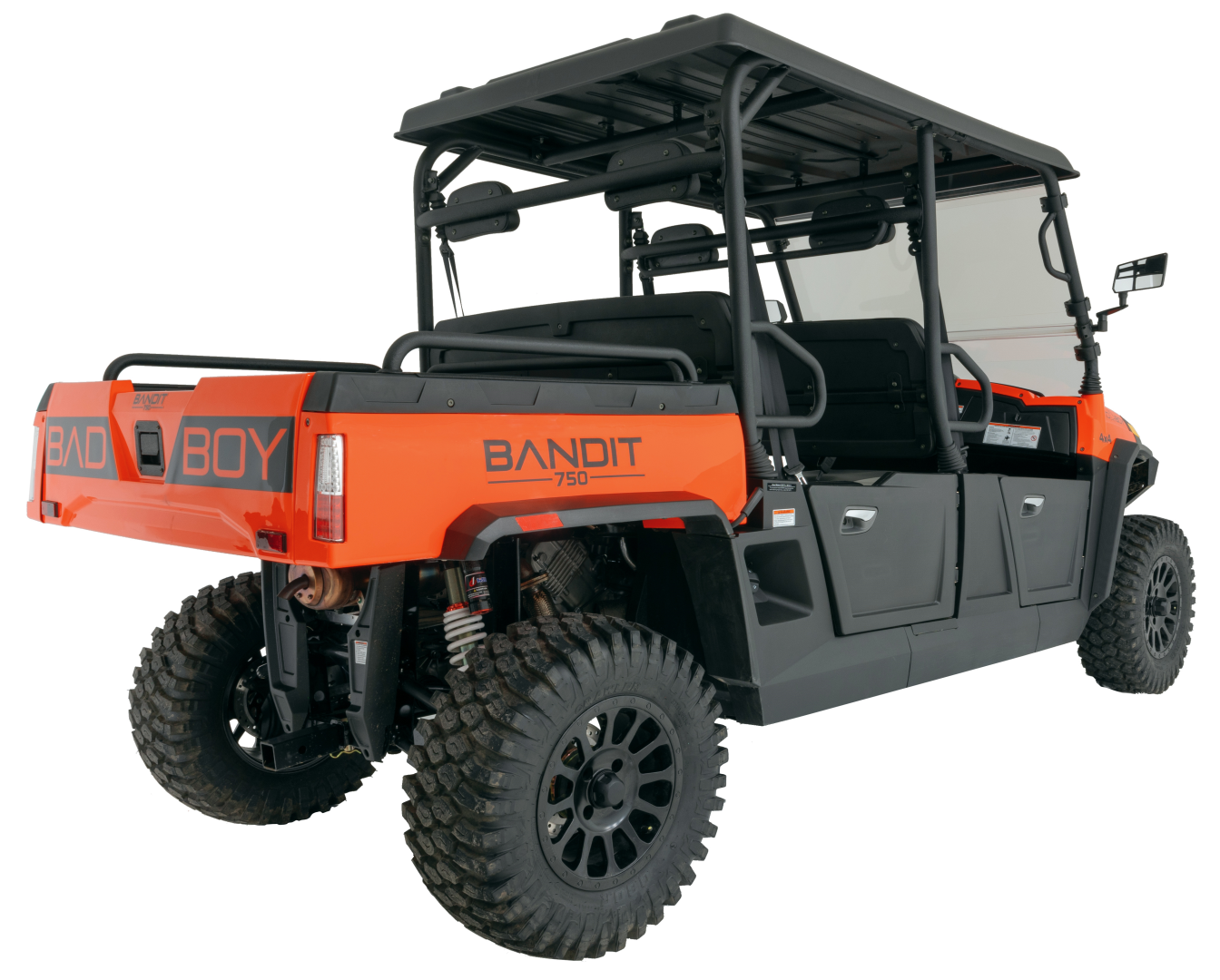

The Bad Boy Bandit Crew Cab is a full‑sized 4‑seat 4×4 side‑by‑side UTV built for utility at work and adventure on the trail. Powered by a 735 cc 4‑stroke single‑cylinder OHC engine with electronic fuel injection and liquid cooling, it delivers strong, reliable performance across tough terrain. The 4‑wheel drive system with selectable 2WD/4WD and a locking front differential, 4‑wheel hydraulic disc brakes, and dual A‑arm independent suspension with nitrogen‑assisted shocks give confident handling and comfort both on the job site and off‑road. It features a 2‑row, 4‑person cab with doors, roof, 2‑piece windshield, power steering, and a 7.5‑gallon fuel tank, paired with a gas‑assisted cargo dump bed rated for 500 lb load capacity and a 3,500 lb winch‑ready front bumper. With 12″ of ground clearance, strong 1,500 lb tow rating, and a rugged Bad Boy stance in orange or camo, the Bandit Crew Cab is designed to haul people, gear, and payloads without sacrificing performance.
| Engine | 4-Stroke Single Cylinder OHC |
|---|---|
| Transmission | Automatic CVT |
| Drive | 2WD / 4WD |
| Locking Differential | Front |
| Cooling System | Liquid |
| Fuel System | EFI |
| Cubic Capacity | 735 cm³ |
| Fuel Tank | 28,4 Liter |
| Suspension | Dual A-Arm front & rear |
|---|---|
| Shocks | Hydraulic with nitrogen assist |
| Brakes | 4-wheel hydraulic disc |
| Parking Brake | Mechanical |
| Front Tire | 27″ x 9″-14″ |
| Rear Tire | 27″ x 11″-14″ |
| Wheels | Aluminum |
| Winch | 1.587 kg |
|---|---|
| Roof | Yes |
| Windshield | 2-piece |
| Doors | Yes |
| Power Steering | EPS |
| Headlights | High/low beam |
| Turn Signals & Horn | Yes |
| Brake Lights | Yes |
| Digital Display | Analog speedometer & tachometer with LCD |
| Length | 155″ (393,7cm) |
|---|---|
| Width | 65″ (165,1 cm) |
| Height | 74″ (188 cm) |
| Wheelbase | 109″ (277 cm) |
| Cargo Bed Size | 34″ X 45″ X 11″ (86 cm X 114 cm X 28 cm) |
| Ground Clearance | 12″ (30,5 cm) |
| Weight (Empty) | 780,2 kg |
| Gross Vehicle Weight | 1.259,2 kg |
| Cargo Capacity | 226,8 kg |
| Seating Capacity | 4 |
| Towing Capacity | 680,4 kg |
Choose the Bandit Crew Cab when you need one tough UTV that can haul people, gear, and heavy loads without compromise. The 735 cc fuel‑injected engine, 4×4 system with locking front differential, and 1,500 lb tow rating give you serious power and traction, while the 4‑person enclosed cab, roof, windshield, and doors make it comfortable and protected in all conditions. The 500‑lb dump bed, front winch, 12″ ground clearance, and rugged Bad Boy build let you tackle jobs and trails with confidence—perfect for ranchers, landowners, and outdoor enthusiasts who want maximum utility in one machine.
Make your Bandit work and play even harder with a full lineup of custom accessories and utility kits. From light bars, audio upgrades, and winch gear to winter, lawn & garden, and hunting bundles, the accessories section lets you build a UTV that’s as tough and capable as you are.
